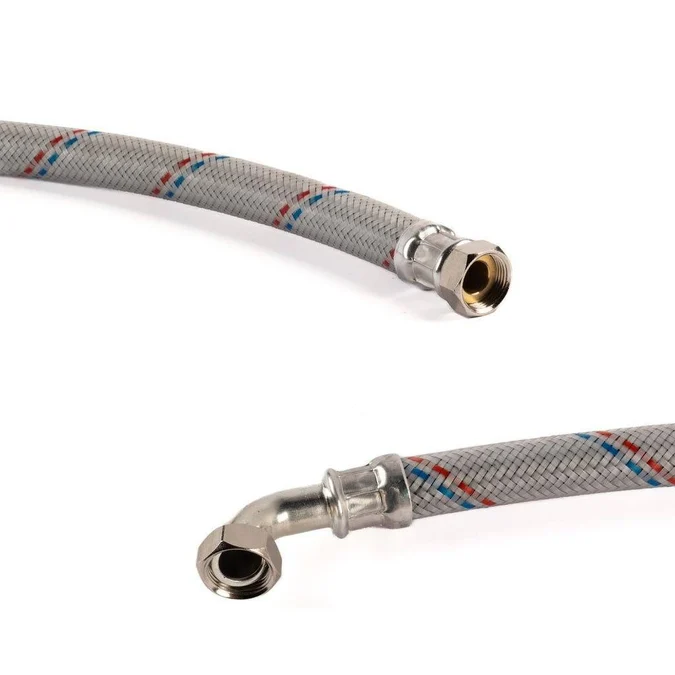

Constructed with an advanced Flatflex PA22 outer structure, this hose offers superior resistance to mechanical wear, high pressure, and physical fatigue. The combination of a straight 3/4" female threaded nut and a 90-degree 3/4" female elbow connection enables clean, space-saving installations in compact control valve environments and tight equipment enclosures. Engineered to maintain full flow capacity without kinking or flow restriction, it ensures a durable, leak-free connection across residential, commercial, and industrial water processing equipment.
Removal Capabilities:
Vibration and Strain Isolation: Absorbs operational hydraulic shocks and mechanical vibrations between control valves and main pipelines.
Compact Space Routing: The 90-degree female elbow design allows tight-radius pipe connections without pinching or restricting internal fluid flow.
Leak-Free Sealing: Provides robust, secure pressure retention across standard threaded connections under dynamic operating conditions.
Flow Maintenance: Preserves consistent DN20 inner bore velocity and prevents internal pressure drops across the connection point.
Technical Characteristics of the Hose:
Product Type: Reinforced Flexible Connecting Hose with Elbow Fitting
Product Series: HSH Flatflex PA22
Connection Type: 3/4" Female Straight x 3/4" Female 90° Elbow (3/4''F - 3/4''FC)
Nominal Bore Diameter: DN20
Overall Hose Length: 600 mm (L600)
Material Construction: High-durability PA22 polymer architecture with reinforced fittings
Installation Profile: Suitable for tight spaces, water treatment bypass loops, and control valve connections
Recommended Operational Conditions:
Application Scope: Commercial water treatment, softening valves, filtration vessels, and plumbing systems
Recommended Flow Profile: Standard DN20 system operating flow rates
Installation Torque: Standard hand-tight plus wrench quarter-turn (Do not overtighten threaded nuts)
Maintenance Interval: Regular visual inspection during routine system servicing
Please note: Ensure proper washer placement inside the female swivel nuts prior to installation to guarantee an absolute watertight seal.
