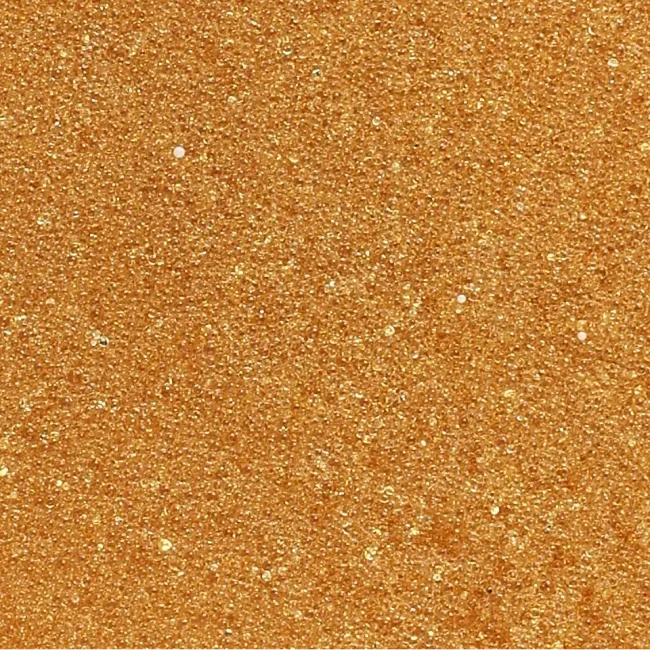

This high-performance resin features a robust styrene-DVB gel matrix with sulfonic acid functional groups, functioning in a standard sodium-cycle (Na+) exchange process. Its highly durable structure guarantees a stable, effective operation for more than 5 years under recommended operational conditions. Thanks to its optimal bulk density, the media ensures highly economical water consumption for backwashing alongside efficient salt intake during the regeneration cycles. While optimized primarily for reliable total hardness extraction, DOWEX HCR-S/S offers excellent resistance to osmotic shock and can safely operate in a wide pH range (0–14) and temperatures up to 120°C (250°F). The resin achieves rapid and complete regeneration using a standard sodium chloride (NaCl) pellet salt brine solution.
Removal Capabilities:
- Total Hardness Removal: Effectively extracts calcium (Ca²⁺) and magnesium (Mg²⁺) ions to eliminate scale buildup and protect plumbing systems.
- Soluble Metal Reduction: Traps baseline concentrations of dissolved ferrous iron and manganese strictly under non-oxidizing, co-current conditions
Technical Characteristics of the Media:
- Product Type: Strong Acid Cation Exchange Resin
- Matrix Structure: Styrene-DVB, gel
- Functional Group: Sulfonic acid
- Ionic Form during Delivery: Na+ form
- Total Exchange Capacity: Minimum 1.9 eq/L (41.5 kgr/ft3 as CaCO³)
- Moisture Content: 48–52%
- Bead Size Distribution Range: 300–1,200 µm (Minimum 90%)
- Number of Uncracked Beads: Minimum 90% whole beads
- Beads Particle Density: 1.3 g/mL
- Bulk Weight / Shipping Weight: 800 g/L (50 lbs/ft³)
- Standard Packaging Volume: 25-liter bags
Recommended Operational Conditions:
- Maximum Operating Temperature: 120°C (250°F)
- Operating pH Range: 0–14
- Minimum Bed Depth: 800 mm (2.6 ft)
- Service / Fast Rinse Flow Rate: 5–50 m/h (2–20 gpm/ft²)
- Co-Current Regeneration / Displacement Rinse Flow Rate: 1–10 m/h (0.4–4 gpm/ft²)
- Total Rinse Water Consumption: 3–6 Bed volumes
- Regenerant Type and Concentration: 8–12% NaCl brine solution
- Salt Consumption for Regeneration: 100–150 g/L of resin
Please note: To calculate the exact filtration cycle capacity and optimize the automated regeneration settings of your water softening unit, a professional water analysis is highly recommended.
